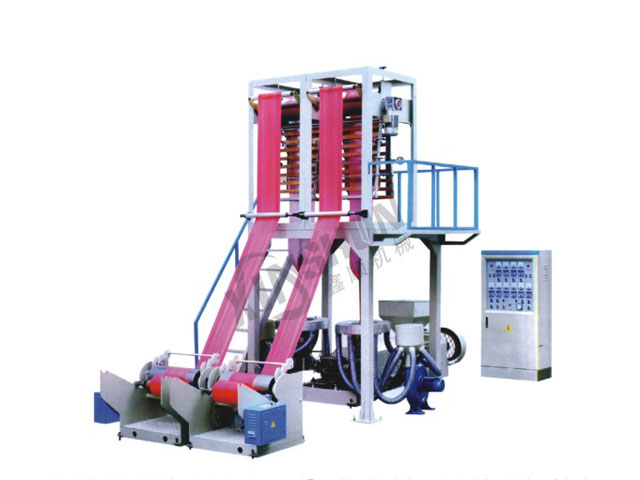

SJ-55FM-600SJ-60FM-700 SJ-65FM-800 Double-head Film Blowing Machine Set
Characteristics:
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance.,Scientifically designed,this machine set has two heads for one extruder with such advantages as increasing production capacity,saving energy,labour and workshop area,etc.
Use:
This machine set is used for blowing Low-density polyethylene(LDPE)and high-density polyethyene(HDPE)plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry,gamenet industry and textile industry,etc.
Main Technical Variabless:
Model
|
SJ-65FM-600
|
SJ-70FM-700
|
SJ-75FM-800
|
Screw Diameter
|
65mm
|
70mm
|
75mm
|
Screw Ratio
|
1:28
|
1:28
|
1:28
|
Screw Speed
|
10-110r/min
|
10-110r/min
|
10-110r/min
|
Max.Output
|
50kg/h
|
70kg/h
|
90kg/h
|
Max.Folding Width of Film
|
550mm*2
|
650mm*2
|
750mm*2
|
Single-sided Thickness of Film
|
0.006-0.10mm
|
0.006-0.10mm
|
0.006-0.10mm
|
Power of Main Motor
|
18.5-22Kw
|
22-30Kw
|
37Kw
|
Total Power
|
40Kw
|
55Kw
|
70Kw
|
Weight of Machine
|
3000kg
|
3800kg
|
4500kg
|
Overall Dimensions
|
4800*2200*3800
|
5000*2400*4000
|
5200*2600*4200
|
